Instant noodle packing

PRODUCT DETAILS

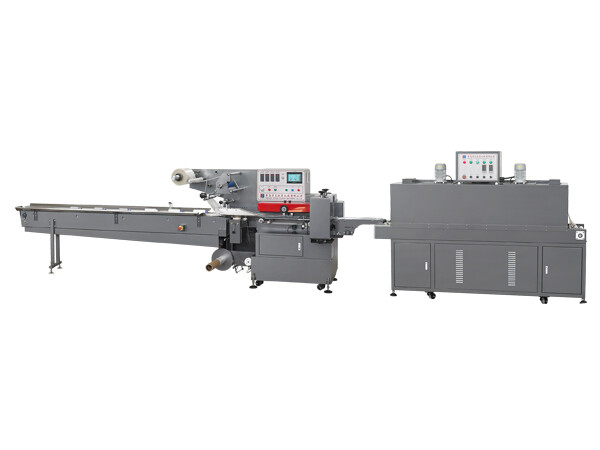

The FFB Up-Film Feeding is a high-performance shrink packing solution that integrates advanced technology with efficient,dependable operation. Featuring a top-fed film system, this machine delivers fast, consistent shrink wrapping performance,

making it an excellent choice for a wide variety of products.


Applications


Designed for use with POF shrink film, the FFB machine supports high-speed, fully automatic shrink packaging.

It is particularly well-suited for heat-shrinkable applications involving:

• Bowl and cup noodles

• Milk bottles and yoghurt cups

• Cosmetic bottles and boxed products


Whether you’re packaging food items requiring protection and shelf appeal, or cosmetic goods demanding a secure and attractive finish,

the FFB ensures clean, consistent, and professional-quality results.


Technical Specifications


Model

FFB450/99

FFB590/120

FFB590/150

FFB590/180

FFB590/210

Max Film Width (mm)

450

590

590

590

590

Packing Rate (Bag/min)

30 - 220 (varies based on product details)

Pack Length (mm)

70 - 450

70 - 450

80 - 450

90 - 450

100 - 450

Pack Width (mm)

10 - 150

10 - 200

10 - 200

10 - 200

10 - 200

Pack Height (mm)

5 - 30

5 - 50

5 - 70

15 - 100

15 - 120

Voltage (V)

220, 1 - phase, 50/60HZ

220, 1 - phase, 50/60HZ220, 1 - phase, 50/60HZ220, 1 - phase, 50/60HZ220, 1 - phase, 50/60HZ

Power Rating (KW)

4

4444

Weight (Kg)

1200

1200120012001200

Dimensions (L×W×H) (mm)

5700×1250×1800

5700×1250×1800

5700×1250×18005700×1250×18005700×1250×1800

Shrink Tunnel - Size

2400/2900x600x1700mm

2400/2900x600x1700mm2400/2900x600x1700mm2400/2900x600x1700mm2400/2900x600x1700mm

Shrink Tunnel - Weight

600Kg

600Kg                         600Kg              600Kg                            600Kg

Shrink Tunnel - Power Rating

16KW

             16KW                16KW16KW16KW

Shrink Tunnel - Voltage

380V, 3 - phase, 50/60HZ

380V, 3 - phase, 50/60HZ380V, 3 - phase, 50/60HZ380V, 3 - phase, 50/60HZ380V, 3 - phase, 50/60HZ
