Bread Packing

PRODUCT DETAILS

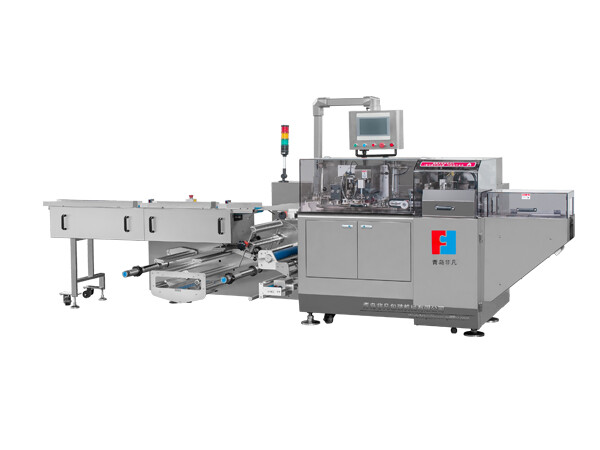

Engineered for high-precision family packing of bulk products, this machine utilizes servo motor-controlled bottom film feeding technology.

It’s ideal for large pita bread and grouping multiple individual packages into a single retail unit, it excels at applications such as:

· Pita bread packing

· Multi-packs of instant noodles (e.g., 5-bag bundles)

· Assorted puffed food combinations

· Consumer goods requiring compact, stable packaging


The advanced box motion end sealer design delivers consistent pressure and extended dwell time,

ensuring reliable seals even with thick films or challenging packaging materials.

This makes it particularly well suited for applications demanding airtight seals or reduced packaging volume.


Technical Specifications


Parameter

Specification

Model

FFC-M590

Max Film Width

590 mm (Customizable up to 720mm/820mm based on client requirements)

Packaging Speed

30-180 bags/min (Adjustable based on product dimensions and film properties)

Pack Length Range

80-450 mm

Pack Width Range

10-200 mm

Pack Height Range

5-120 mm

Voltage

220V

Total Power

4 kW

Machine Weight

1,200 kg

Dimensions (L×W×H)

5,700 × 1,250 × 1,800 mm
